Camera-based tactile sensor

Tactile sensors provide a pressure or contact profile, similar to touch we feel on our skin. They offer rich feedback about the grasping process and are thus essential for adaptive and sensitive grasping processes. Our camera-based solution requires only a passive and deformable material, which deforms on pressure. Our image processing software derives a tactile signal from the observed deformation.




Interactive demo: Drag the objects to the finger to see the tactile profile

Pressure [MPa]

Tactile Pressure Profile







Development kit

Our kit contains everything you need to get started quickly with tactile sensing. Contact us for options and availablity.

  • Sensitive element (rubber foam bar), with mounts for common grippers
  • USB3 camera
  • Sensor software with ROS integration
  • Bootable USB stick
  • Web-based interface

Technical data

Application Gripper finger, eye-in-hand camera High-end camera
Deformable element EPDM (Rubber foam)
Sensor length * 20  to 150 mm typ.
Data points 1x20 to 1x150 (1 point/mm length)
Maximum pressure * 100 kPa – 1 MPa
Trigger level 5% typ.
Noise level 2% typ.
Sampling rate 60-120 Hz (camera framerate)
Software Sensor software running on ROS/Linux
Camera USB3 Vison, Standard USB UVC, etc.

*: Adjustable values
Values are given for a typical camera setup: Full HD camera, 30 cm distance.

Other products

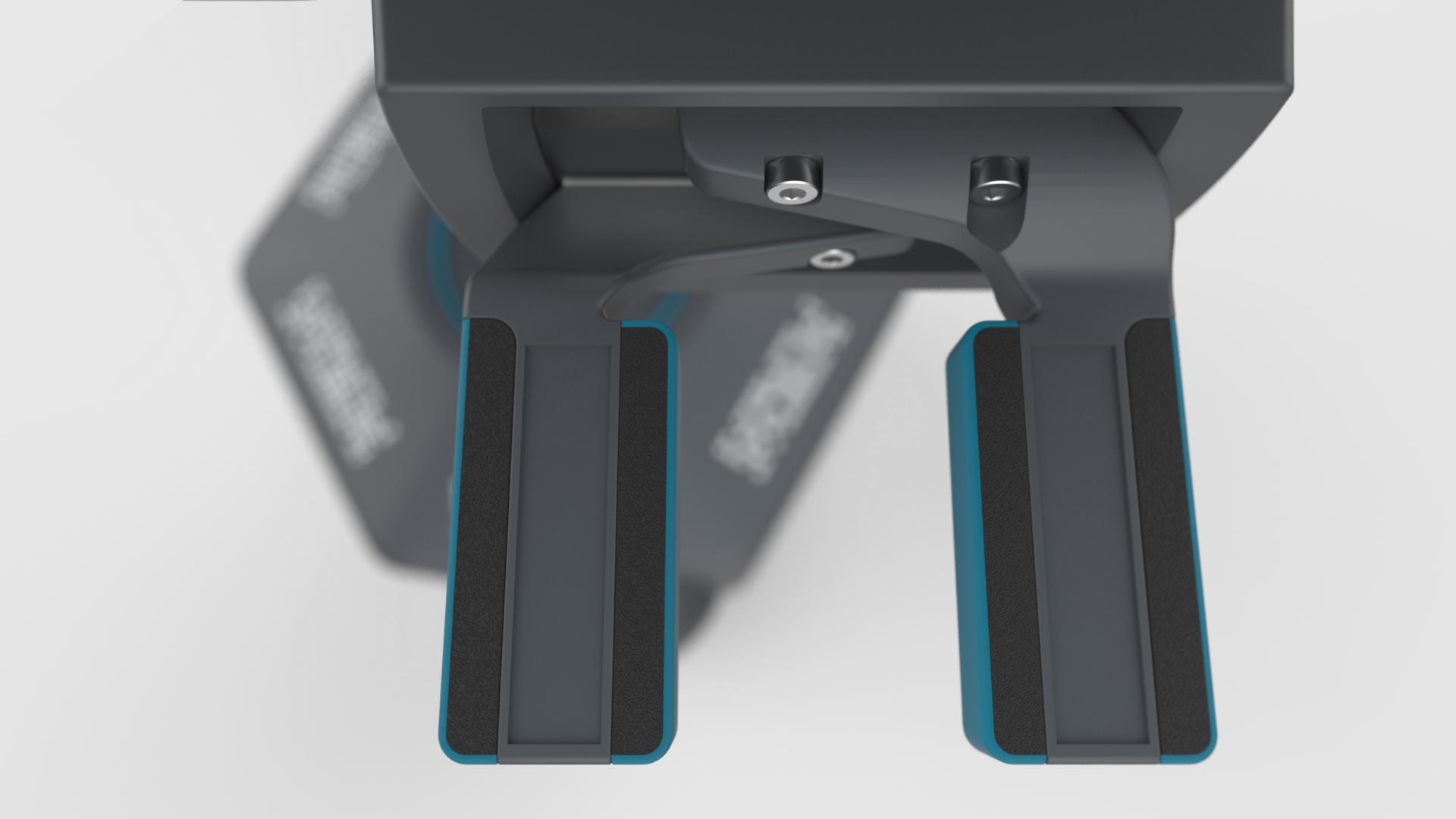

Camera-based tactile sensor

The sense of touch for robot grippers! Our solution relies on a passive sensitive element and provides tactile data from image processing.

VisePick Low Cost Pick and Place

Low-cost robot arm with camera-based joint position sensors for small-scale automation applications with integrated vision

ViseGrip Intelligent Gripping Solution

Gripping system for sensitive handling and flexible grasping with integrated cameras and camera-based tactile sensors on the fingers

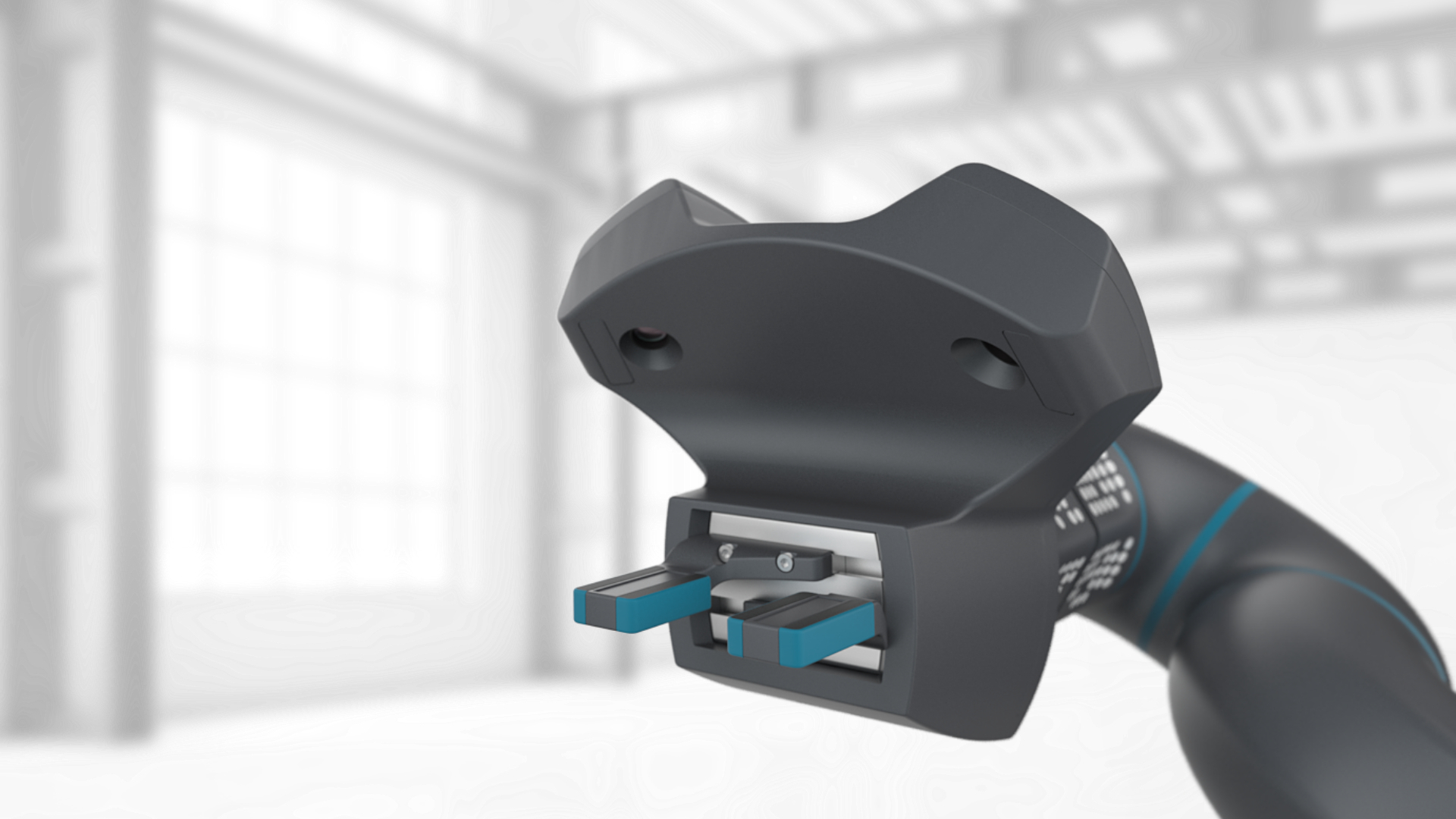

ViseGrip for E-Commerce

Reliable, cost effective gripping for textured or labeled objects ideal for unstructured environment and easy trained without any CAD data.
